Product Introduction

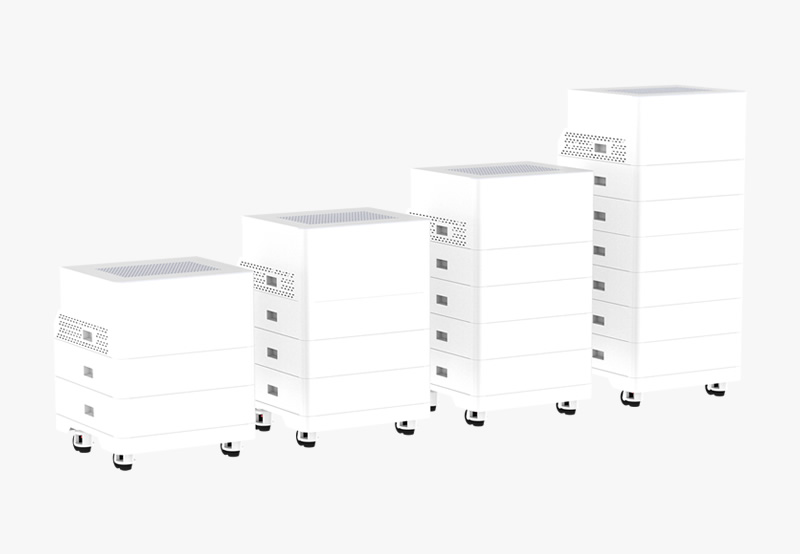

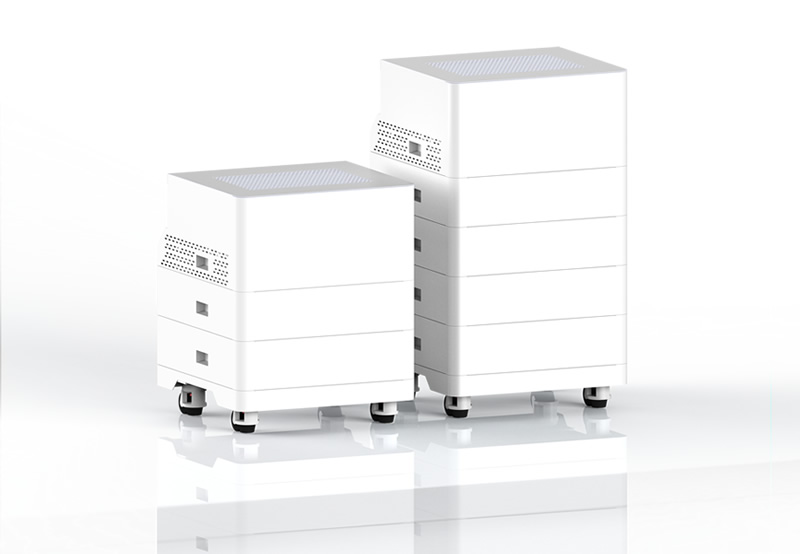

1、Appearance of the all-in-one system
Integrated with inverter, lithium battery, and energy management system, lightweight, fashionable and minimalist.
2、Intelligent energy management
Mobile APP control ,monitoring equipment running state preset a variety of energy modes, household electricity fully understanding.

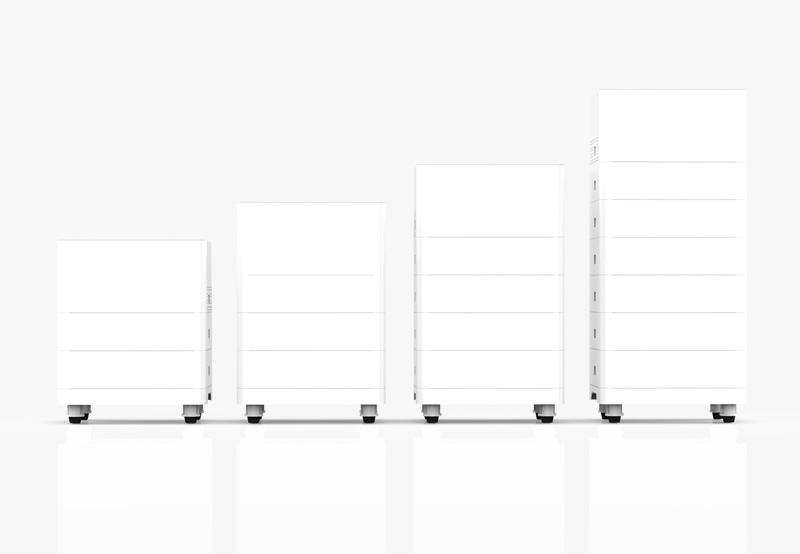

3、Modular installation
A modular product and wiring harness design reduce installation time and facilitate maintenance and commissioning operations.
4、Active safety system
Lithium iron phosphate battery is utilized, resulting in an excellent heat dissipation design that can ensure active temperature control and improve overall service life.
Quality life ultimate enjoyment
The all-in-one residential energy storage system can store electricity via photovoltaics (PV) or a power grid and provide power supply for your household at night and during power outages. In addition, the peak and off-peak demands for electricity can be reasonably set via the companion APP to balance the supplier-household relation in terms of time and achieve the independence of the household power grid.
More versatility, more of what you want
An all-in-one professional energy storage system provides a whole-house electric power safeguard for lighting, refrigerators, air conditioners, washing machines, and other equipment with high power requirements!
Product Parameters
Single phase low voltage allinone battery | |
Rated power | 3kW~6kW |
Battery capacity | 2.4kWh~15.36kwWh |
Nominal voltage | 51.2V |
Three phase high voltage allinone battery | |
Rated power | 4kW~20kW |
Battery capacity | 9.6kWh~40.96kwh |
Nominal voltage | 204.8V~409.6V |
Nominal voltage | |
Battery type | Lithium iron phosphate battery cell |
Battery module capacity | 2.4kWh、5.12kWh |
Battery module dimension | 552X556X 141(WDH) |
IP rating | IP54 |
Operating temperature | -20~50℃ |
Operational height | 2000m |
Cycle life | >7000 times |
Communication | CAN, RS 485, WiFi/LAN |
System protection | Polarity Protection、Battery Input Reber se、Connection Protection、Insulation Resistance Protection、Surge Protection、Overload Protection、Over-temperature Protection、Residual Current Protection、Is landing Protection、A COver-voltage Protection、AC Short-circuit Protection |
